Example usage

[34]:

import sys
!{sys.executable} -m pip install biosonic[praat]

zsh:1: no matches found: biosonic[praat]

[35]:

from biosonic import handle, plot, compute, filter

Read file and plot spectrogram

[36]:

data_folder = "./example_data/"

[37]:

data, sr, n_ch, quant = handle.read_wav(data_folder+"GT00024_G00219_Dagobert_distance.wav")
print(f"sampling rate: {sr}, number of channels: {n_ch}, quantization: {quant}")

sampling rate: 44100, number of channels: 1, quantization: float32

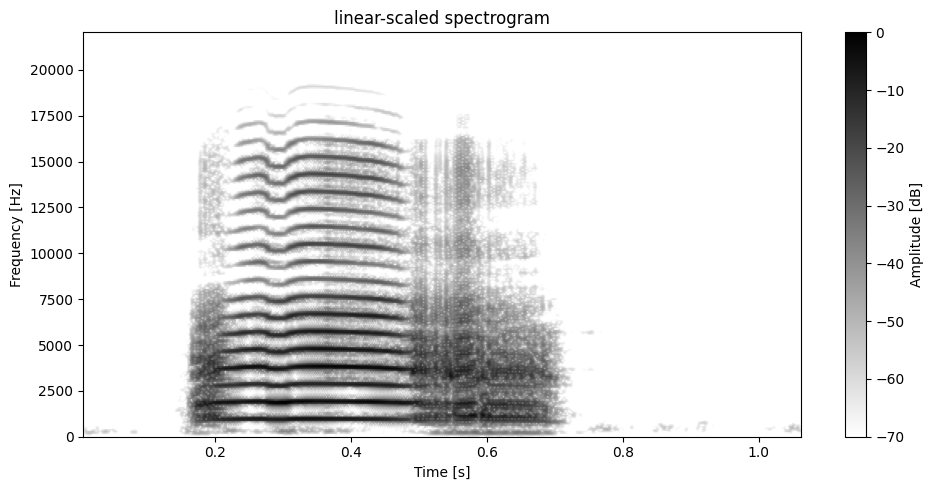

[38]:

WINDOW_LENGTH = 512
DYNAMIC_RANGE = 70

plot.plot_spectrogram(data, sr=sr, window_length=WINDOW_LENGTH, overlap=95, dynamic_range=DYNAMIC_RANGE)

[38]:

(<Figure size 1000x500 with 2 Axes>,
 <Axes: title={'center': 'linear-scaled spectrogram'}, xlabel='Time [s]', ylabel='Frequency [Hz]'>)

[39]:

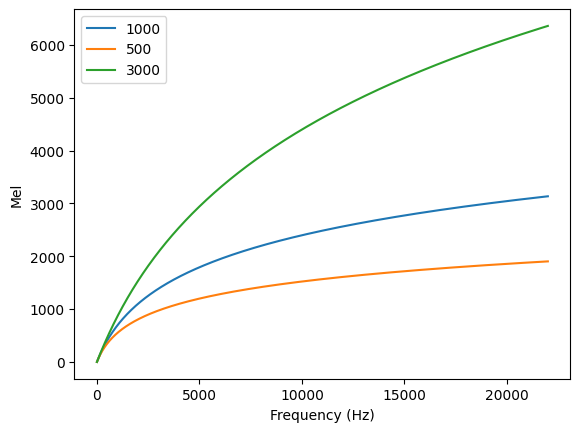

import numpy as np
import matplotlib.pyplot as plt

hz = np.linspace(0, 22000, 1000)
mel= compute.utils.hz_to_mel(hz, corner_frequency=1000)
plt.plot(hz, mel, label="1000")
mel= compute.utils.hz_to_mel(hz, corner_frequency=500)
plt.plot(hz, mel, label="500")
mel= compute.utils.hz_to_mel(hz, corner_frequency=3000)
plt.plot(hz, mel, label="3000")

plt.legend()
plt.xlabel("Frequency (Hz)")
plt.ylabel("Mel")
plt.show()

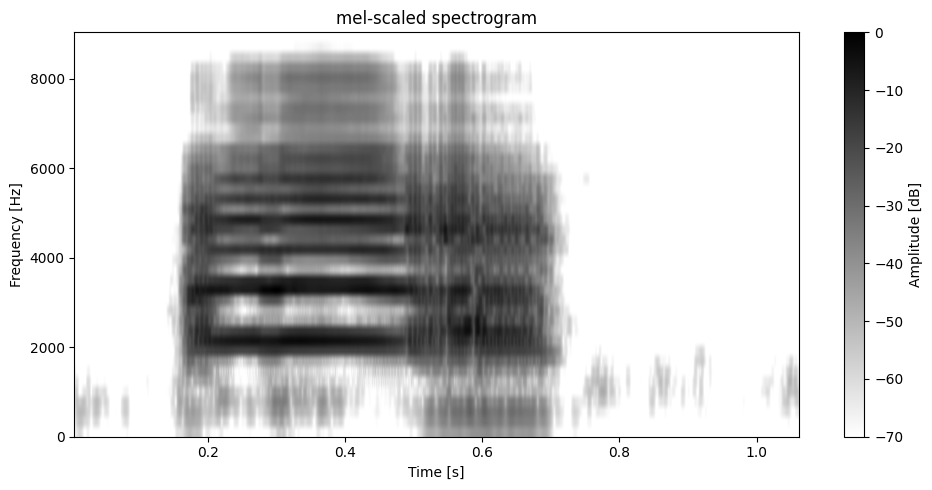

[40]:

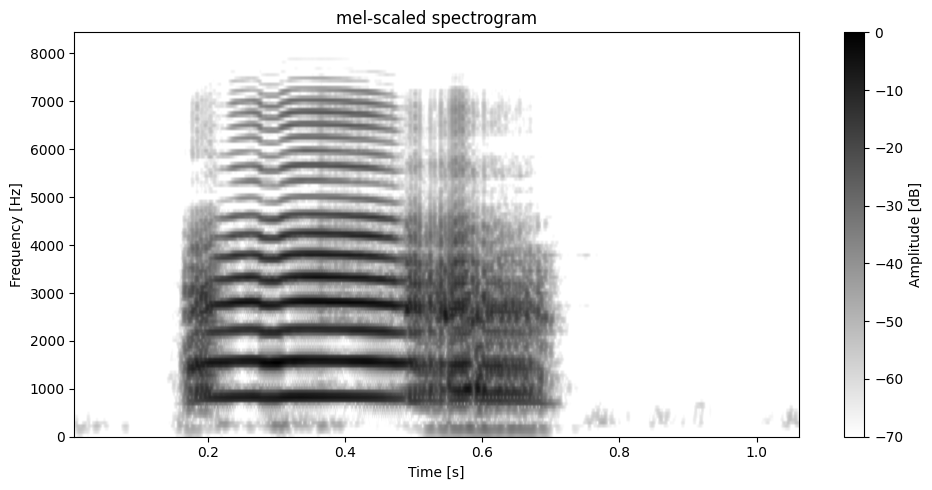

plot.plot_spectrogram(data, sr=sr, window_length=WINDOW_LENGTH, overlap=95, dynamic_range=DYNAMIC_RANGE, freq_scale="mel", n_bands=40)
plot.plot_spectrogram(data, sr=sr, window_length=WINDOW_LENGTH, overlap=95, dynamic_range=DYNAMIC_RANGE, freq_scale="mel", n_bands=128, corner_frequency=5000)

[40]:

(<Figure size 1000x500 with 2 Axes>,
 <Axes: title={'center': 'mel-scaled spectrogram'}, xlabel='Time [s]', ylabel='Frequency [Hz]'>)

[41]:

# import librosa

# S = librosa.feature.melspectrogram(y=data, sr=sr, n_fft=WINDOW_LENGTH, n_mels=128)
# fig, ax = plt.subplots()
# S_dB = librosa.power_to_db(S, ref=np.max)
# img = librosa.display.specshow(S_dB, x_axis='time',
#                          y_axis='mel', sr=sr, ax=ax, cmap="binary")
# fig.colorbar(img, ax=ax, format='%+2.0f dB')
# ax.set(title='Mel-frequency spectrogram')

[42]:

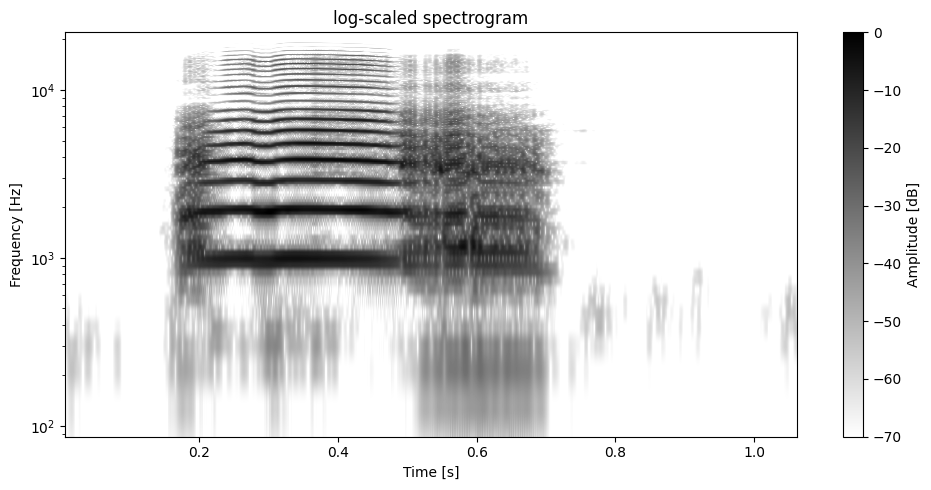

plot.plot_spectrogram(data, sr=sr, window_length=WINDOW_LENGTH, overlap=95, dynamic_range=DYNAMIC_RANGE, freq_scale="log")

[42]:

(<Figure size 1000x500 with 2 Axes>,
 <Axes: title={'center': 'log-scaled spectrogram'}, xlabel='Time [s]', ylabel='Frequency [Hz]'>)

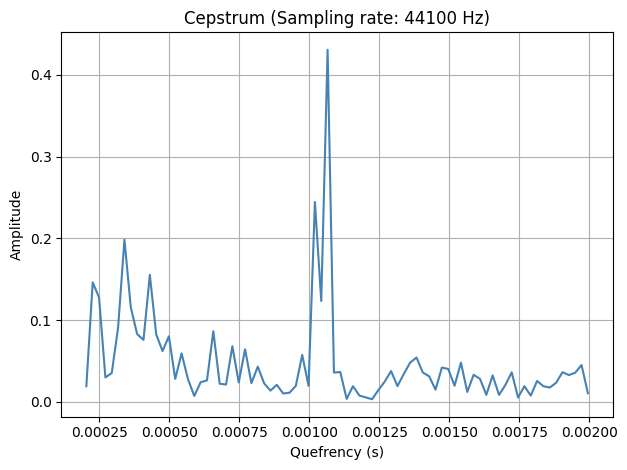

Cepstrum and cepstral coefficients

[43]:

ceps = compute.spectrotemporal.cepstrum(data, sr)
plot.plot_cepstrum(data, sr, max_quefrency=1/500, min_quefrency=1/5000)

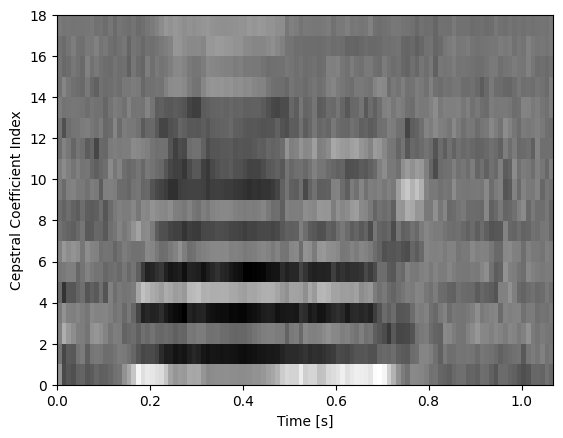

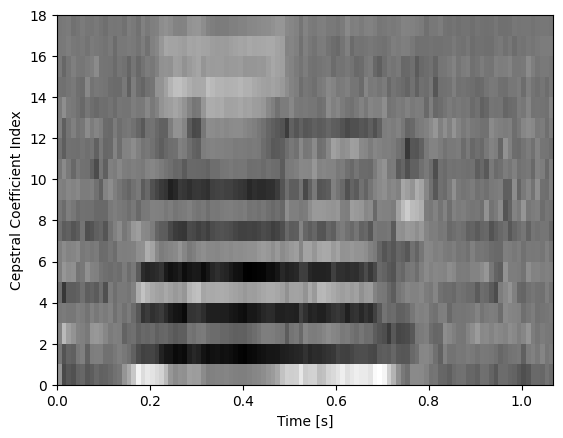

[44]:

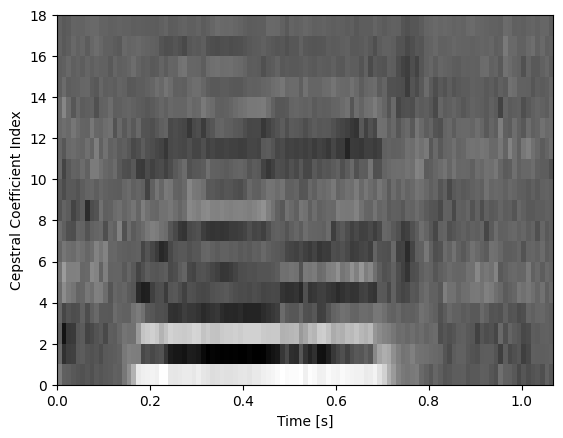

plot.plot_cepstral_coefficients(data, sr, WINDOW_LENGTH, filterbank_type="log", n_ceps=18, fmin=2000)

[45]:

plot.plot_cepstral_coefficients(data, sr, WINDOW_LENGTH, filterbank_type="linear", n_ceps=18, fmin=2000)

[46]:

plot.plot_cepstral_coefficients(data, sr, WINDOW_LENGTH, filterbank_type="mel", n_ceps=18, fmin=2000)

[47]:

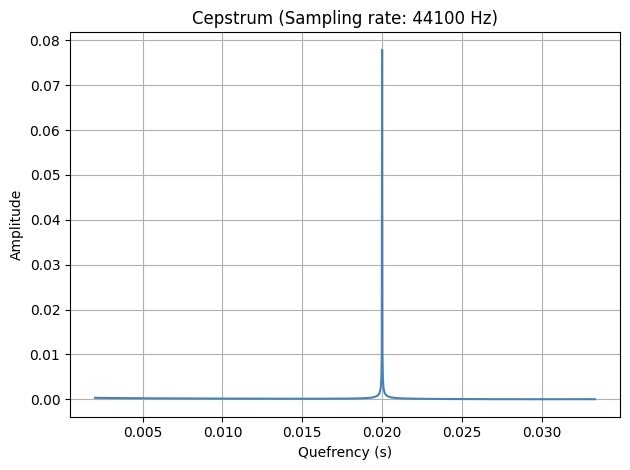

from scipy.signal import sawtooth
perios_s = 1
times = np.linspace(0, perios_s, perios_s * 44100)
f_Hz = 50
# sine_w = np.sin(2 * np.pi * f_Hz * times) + np.sin(2 * np.pi * f_Hz*2 * times)

saw = sawtooth(2 * np.pi * f_Hz * times)
# plt.plot(times, sine_w)
# plt.show()
plot.plot_cepstrum(saw, sr, min_quefrency=1/500, max_quefrency=1/30)

Filter signal

[48]:

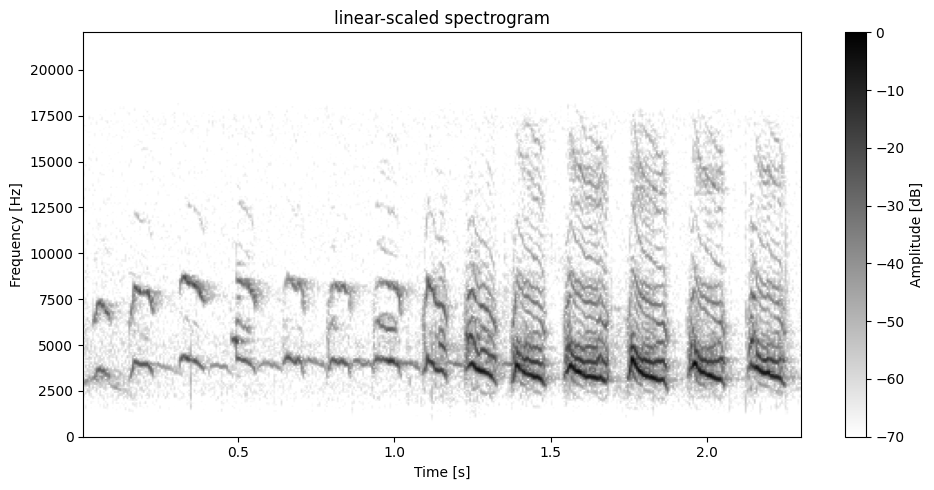

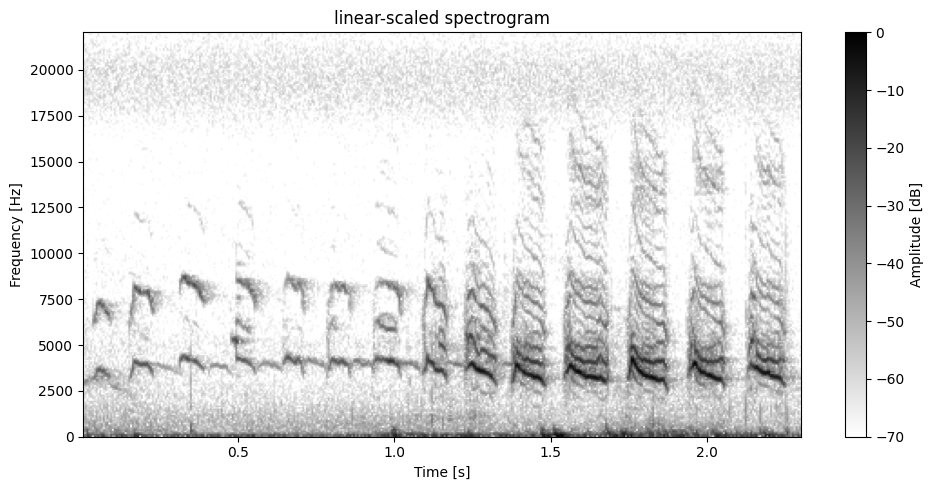

data, sr, n_ch, quant = handle.read_wav(data_folder+"/201.wav")
print(f"sampling rate: {sr}, number of channels: {n_ch}, quantization: {quant}")
plot.plot_spectrogram(data, sr, dynamic_range=DYNAMIC_RANGE)

sampling rate: 44100, number of channels: 1, quantization: float32

[48]:

(<Figure size 1000x500 with 2 Axes>,
 <Axes: title={'center': 'linear-scaled spectrogram'}, xlabel='Time [s]', ylabel='Frequency [Hz]'>)

[49]:

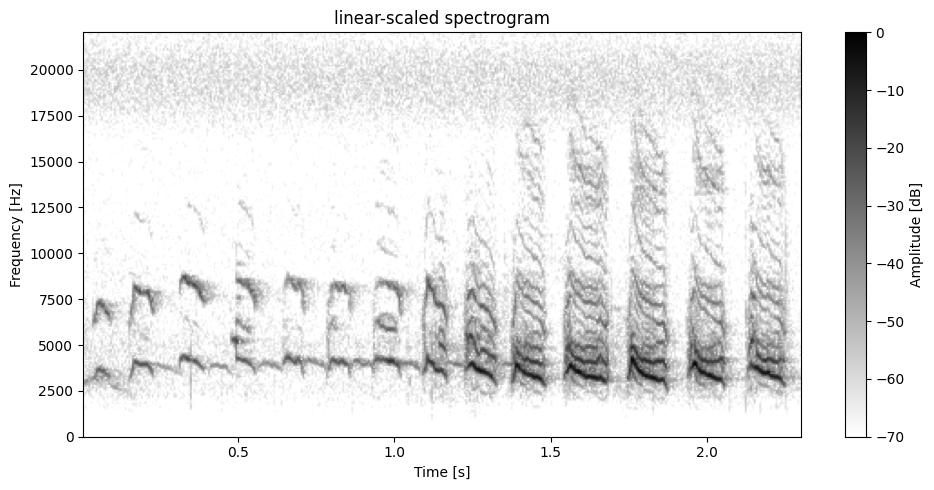

x_filtered = filter.filter(data, sr, f_cutoff=2500, type="highpass")
plot.plot_spectrogram(x_filtered, sr, dynamic_range=DYNAMIC_RANGE)

[49]:

(<Figure size 1000x500 with 2 Axes>,
 <Axes: title={'center': 'linear-scaled spectrogram'}, xlabel='Time [s]', ylabel='Frequency [Hz]'>)

[50]:

# change order for steeper frequency cutoff
x_filtered = filter.filter(x_filtered, sr, f_cutoff=17500, type="lowpass", order=4)
plot.plot_spectrogram(x_filtered, sr, dynamic_range=DYNAMIC_RANGE)

[50]:

(<Figure size 1000x500 with 2 Axes>,
 <Axes: title={'center': 'linear-scaled spectrogram'}, xlabel='Time [s]', ylabel='Frequency [Hz]'>)

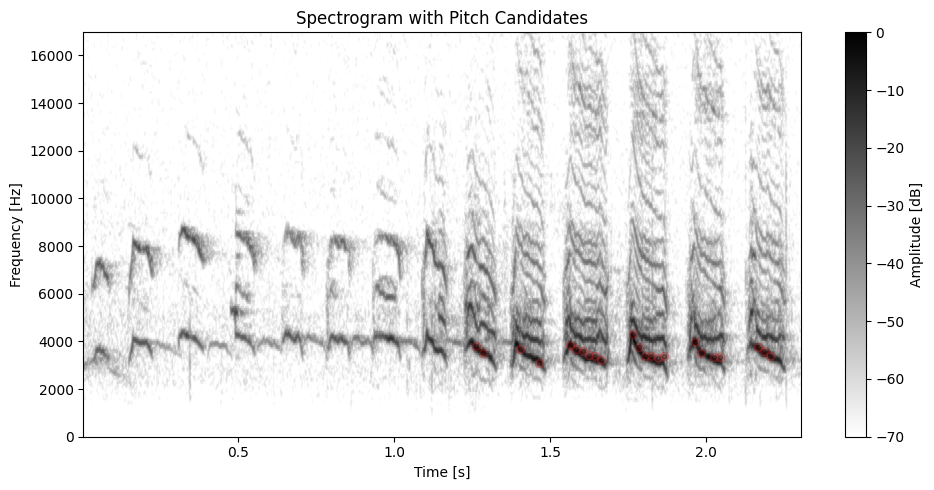

Pitch tracking

[51]:

# praat autocorrelation pitch tracking
time_points, candidates ,_ ,_= compute.pitch.boersma(x_filtered, sr, min_pitch=2000, max_pitch=6000, voicing_thresh=.3, timestep=0.02, octave_cost=0.03, silence_thresh=0.05, plot=True, window_length=WINDOW_LENGTH, overlap=95, flim=(0,17000), dynamic_range=DYNAMIC_RANGE)

Audio feature extraction

[52]:

features = compute.utils.extract_all_features(x_filtered, sr, min_prominence=0.7, noise_threshold=0.5, plot=True, envelope_kwargs={"silence_threshold": 0.05}, spec_kwargs={"dynamic_range": DYNAMIC_RANGE}) # lower resolution for dom freqs?

[53]:

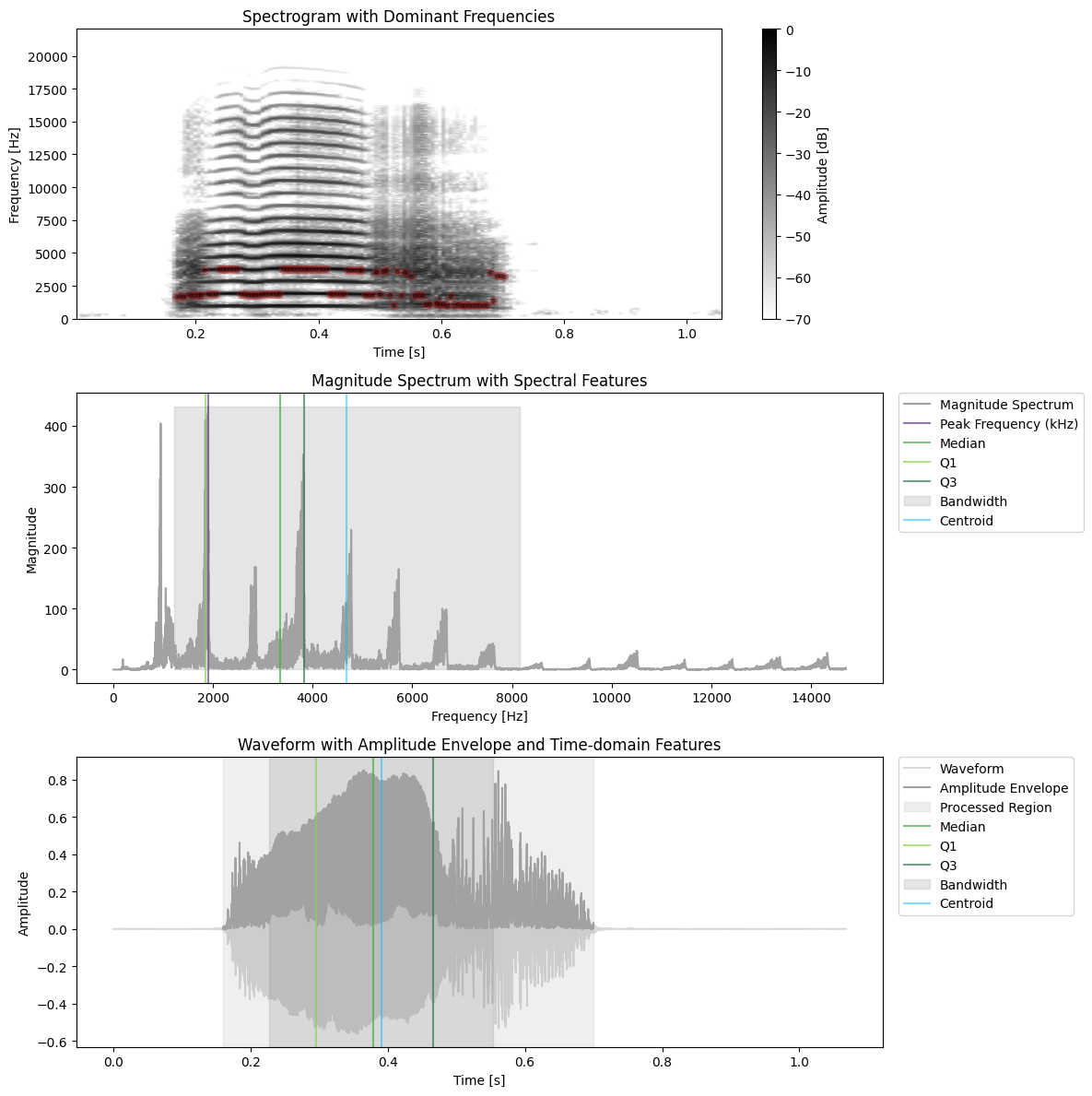

x2, sr2, _, _ = handle.read_wav(data_folder+"GT00024_G00219_Dagobert_distance.wav")
features = compute.utils.extract_all_features(x2, sr2, min_prominence=0.7, noise_threshold=0.5, plot=True, envelope_kwargs={"silence_threshold": 0.01}, spec_kwargs={"dynamic_range": DYNAMIC_RANGE}) # lower resolution for dom freqs?

[ ]:

features

{'t_q1': 0.13582766439909297,
 't_median': 0.21848072562358276,
 't_q3': 0.3056689342403628,
 'temporal_centroid': np.float64(0.390789263881122),
 'temporal_sd': 0.16312278807163239,
 'temporal_skew': 1.1527855396270752,
 'temporal_kurtosis': 1.427086353302002,
 'amplitude_envelope': array([0.01064709, 0.00333164, 0.0036631 , ..., 0.02279189, 0.01959393,
        0.01777992], shape=(23814,), dtype=float32),
 'duration': 0.54,
 'temporal_entropy': 5.1806151021833085,
 'trim_indices': (7056, 30870),
 'trim_times': (0.16, 0.7),
 'fq_q1': np.float64(1859.7795850763384),
 'fq_median': np.float64(3345.9176523050137),
 'fq_q3': np.float64(3821.631665003292),
 'spectral_flatness': np.float32(0.00090685516),
 'spectral_centroid': np.float64(4687.6186591089645),
 'spectral_sd': np.float64(3471.778381314025),
 'spectral_skew': np.float64(1.5079534767972311),
 'spectral_kurtosis': np.float64(4.963427221706459),
 'peak_frequency': 1904.7289406068844,
 'pse': 0.6840756522188091,
 'spectrotemporal_entropy': 2.6155203100838933,
 'dominant_freqs': array([         nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
        1636.5234375, 1722.65625  , 1636.5234375,          nan,
        1808.7890625, 1808.7890625, 1808.7890625, 1808.7890625,
        3703.7109375, 1894.921875 , 1894.921875 , 1894.921875 ,
        3789.84375  , 3789.84375  , 3789.84375  , 3789.84375  ,
        3789.84375  , 3789.84375  , 1894.921875 , 1894.921875 ,
        1808.7890625, 1808.7890625, 1808.7890625, 1808.7890625,
        1894.921875 , 1894.921875 , 1894.921875 , 1894.921875 ,
        1894.921875 , 1894.921875 , 3789.84375  , 3789.84375  ,
        3789.84375  , 3789.84375  , 3789.84375  , 3789.84375  ,
        3789.84375  , 3789.84375  , 3789.84375  , 3789.84375  ,
        3789.84375  , 3789.84375  , 3789.84375  , 1894.921875 ,
        1894.921875 , 1894.921875 , 1894.921875 , 1894.921875 ,
        3703.7109375, 3703.7109375, 3703.7109375, 3703.7109375,
        3703.7109375, 1808.7890625, 1808.7890625, 1808.7890625,
        3531.4453125, 1894.921875 , 3617.578125 , 3703.7109375,
        1808.7890625, 1033.59375  , 3617.578125 , 1808.7890625,
        3531.4453125,          nan, 3186.9140625, 1808.7890625,
        1808.7890625, 1808.7890625, 1119.7265625, 1119.7265625,
                 nan, 1205.859375 , 1119.7265625, 1119.7265625,
        1033.59375  , 1722.65625  , 1033.59375  , 1119.7265625,
        1033.59375  , 1033.59375  , 1033.59375  , 1033.59375  ,
        1033.59375  , 1033.59375  , 1033.59375  , 1033.59375  ,
        3531.4453125, 1378.125    , 3273.046875 , 3273.046875 ,
        3186.9140625,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan,          nan,          nan,
                 nan,          nan]),
 'mean_dom': np.float64(2401.19140625),
 'min_dom': 1033.59375,
 'max_dom': 3789.84375,
 'range_dom': 2756.25,
 'mod_dom': np.float64(14.625)}

[ ]:

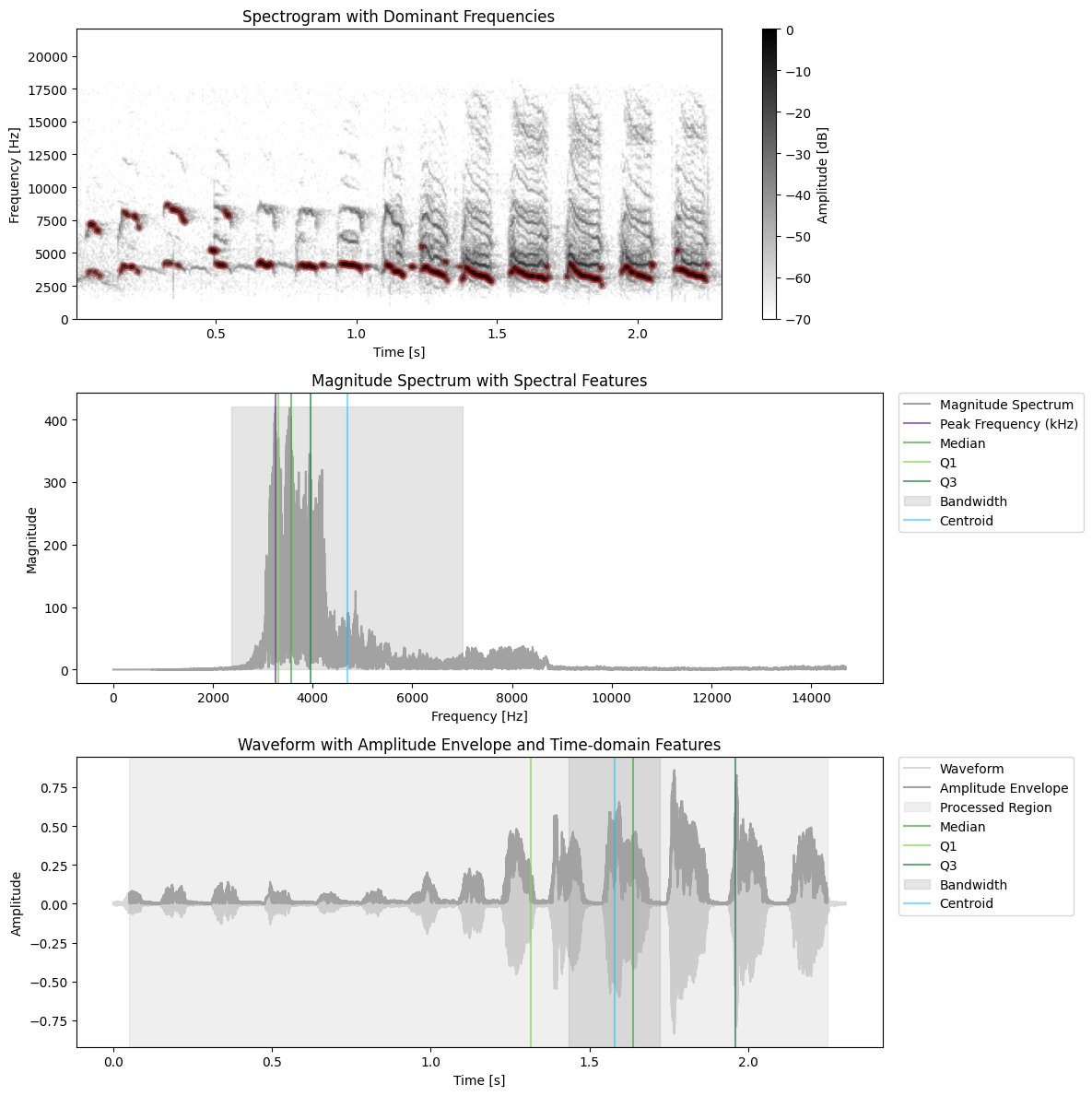

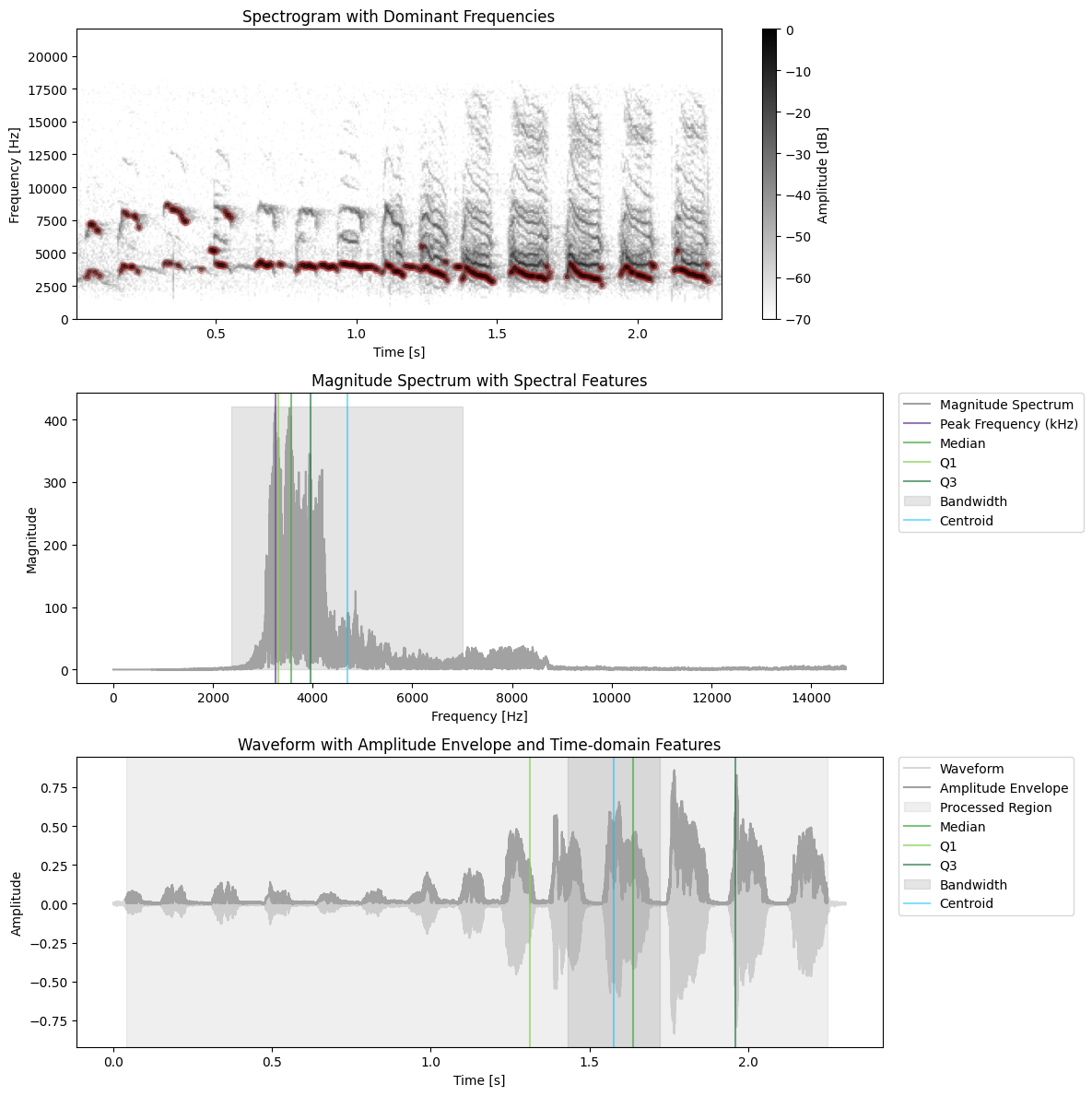

features = compute.utils.extract_all_features(
    x_filtered,
    sr,
    min_prominence=0.7, # for dominant frequencies
    noise_threshold=0.3, # for dominant frequencies
    plot=True,
    spec_kwargs={"dynamic_range": DYNAMIC_RANGE},
    envelope_kwargs={"silence_threshold": 0.02}
    )

Batch normalize files in a folder and export features as csv

[56]:

handle.batch_normalize_wav_files(data_folder, 44100, 1, "float32")

Normalized: 307.wav -> example_data/normalized/307.wav
Normalized: GT00025_G00220_Jafar_distance.wav -> example_data/normalized/GT00025_G00220_Jafar_distance.wav
Normalized: GT00024_G00219_Dagobert_distance.wav -> example_data/normalized/GT00024_G00219_Dagobert_distance.wav
Normalized: 201.wav -> example_data/normalized/201.wav

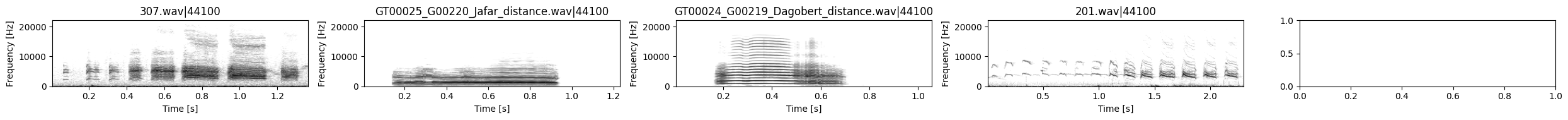

[57]:

features_df = handle.batch_extract_features(data_folder+"/normalized", save_csv_path="extracted_features.csv")

processing 307.wav
processing GT00025_G00220_Jafar_distance.wav
processing GT00024_G00219_Dagobert_distance.wav
processing 201.wav
Features saved to: example_data/normalized/extracted_features.csv

[58]:

features_df

[58]:

	t_q1	t_median	t_q3	temporal_centroid	temporal_sd	temporal_skew	temporal_kurtosis	amplitude_envelope	duration	temporal_entropy	...	peak_frequency	pse	spectrotemporal_entropy	dominant_freqs	mean_dom	min_dom	max_dom	range_dom	mod_dom	filename
0	0.599138	0.817007	1.027755	0.798286	0.179693	1.242795	0.902818	[0.061606277, 0.040474925, 0.045253057, 0.0359...	1.370091	5.362802	...	64.959203	0.773999	4.150805	[86.1328125, 86.1328125, nan, nan, nan, 172.26...	3016.823509	86.132812	6546.093750	6459.960938	26.866667	307.wav
1	0.448503	0.618821	0.762358	0.596139	0.088544	0.675405	-0.359208	[1.8862542e-06, 1.0176342e-05, 1.6869204e-06, ...	1.242245	4.241841	...	1334.680467	0.457769	1.941783	[nan, nan, nan, nan, nan, nan, nan, nan, nan, ...	1496.796875	947.460938	3789.843750	2842.382812	10.272727	GT00025_G00220_Jafar_distance.wav
2	0.295850	0.378707	0.466259	0.391255	0.156971	1.738432	3.013786	[0.0006397646, 0.00046644738, 0.00043387563, 0...	1.067868	3.823437	...	1904.728941	0.684076	2.615520	[nan, nan, nan, nan, nan, nan, nan, nan, nan, ...	2371.343994	775.195312	3789.843750	3014.648438	17.371429	GT00024_G00219_Dagobert_distance.wav
3	1.289433	1.607664	1.873061	1.533700	0.172134	1.484269	1.465645	[0.06589466, 0.046111397, 0.04067738, 0.040626...	2.307528	5.463995	...	45.936597	0.719736	3.932635	[2928.515625, 344.53125, nan, nan, 86.1328125,...	2844.820534	86.132812	8699.414062	8613.281250	42.490000	201.wav

4 rows × 28 columns

Parse praat TextGrids and extract segments from file

This relies on the praat-textgrids library written by Tommi Nieminen:

https://github.com/Legisign/Praat-textgrids

[59]:

data, sr, _, _ = handle.read_wav(data_folder+"/201.wav", n_channels=1)

[60]:

# get boundaries and plot
segments = handle.boundaries_from_textgrid(data_folder+"/201.TextGrid", tier_name="segments")

[61]:

segments

[61]:

[{'label': '1', 'begin': 0.03192743764172336, 'end': 0.09225804535141492},
 {'label': '2', 'begin': 0.14802721088435375, 'end': 0.22507401889130346},
 {'label': '3', 'begin': 0.3076643990929705, 'end': 0.3885398324788586},
 {'label': '4', 'begin': 0.47020408163265304, 'end': 0.5659863945578232},
 {'label': '5', 'begin': 0.6443537414965986, 'end': 0.7140136054421768},
 {'label': '6', 'begin': 0.7923809523809524, 'end': 0.8591383219954648},
 {'label': '7', 'begin': 0.9346031746031747, 'end': 1.0199265374607902},
 {'label': '8', 'begin': 1.08843537414966, 'end': 1.1690890923594341},
 {'label': '9', 'begin': 1.224258804445234, 'end': 1.3284682606073004},
 {'label': '10', 'begin': 1.3754646820137224, 'end': 1.4858041061853222},
 {'label': '11', 'begin': 1.5430171409409665, 'end': 1.6880930504999216},
 {'label': '12', 'begin': 1.7432627625857215, 'end': 1.8781220587954544},
 {'label': '13', 'begin': 1.933061224489796, 'end': 2.072380952380952},
 {'label': '14', 'begin': 2.124625850340136, 'end': 2.2500067847071428}]

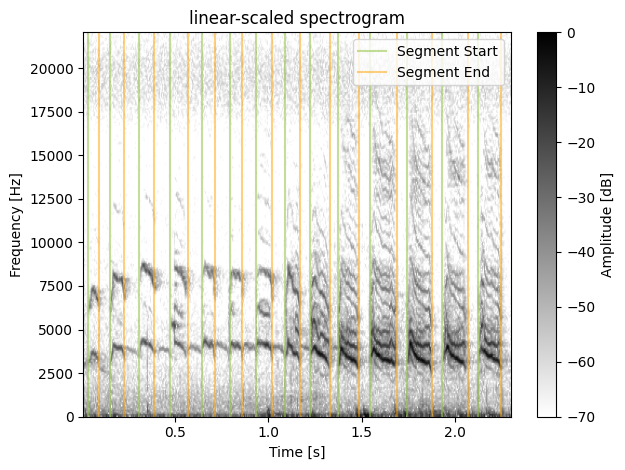

[62]:

plot.plot_boundaries_on_spectrogram(data, sr, segments, dynamic_range=DYNAMIC_RANGE)

[63]:

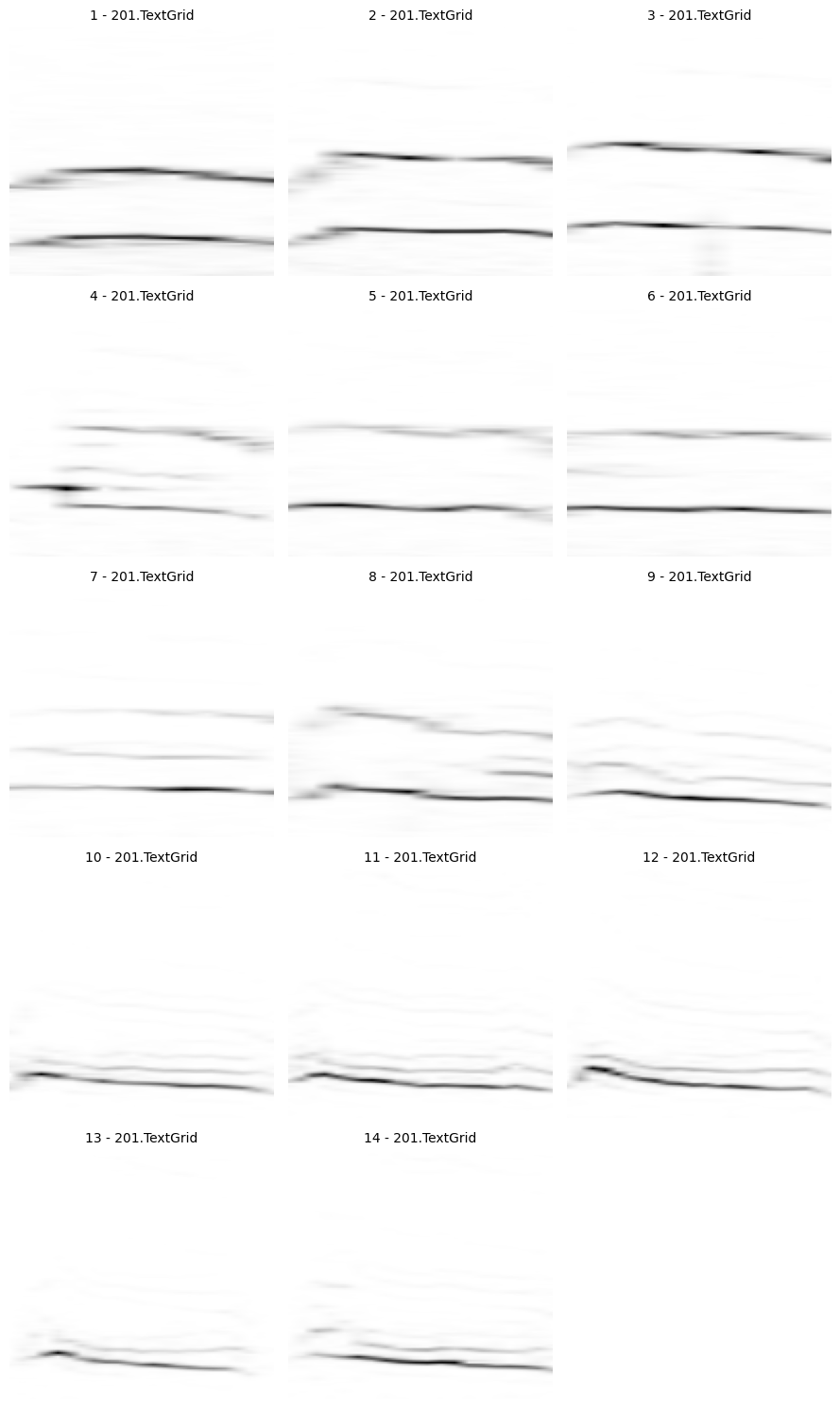

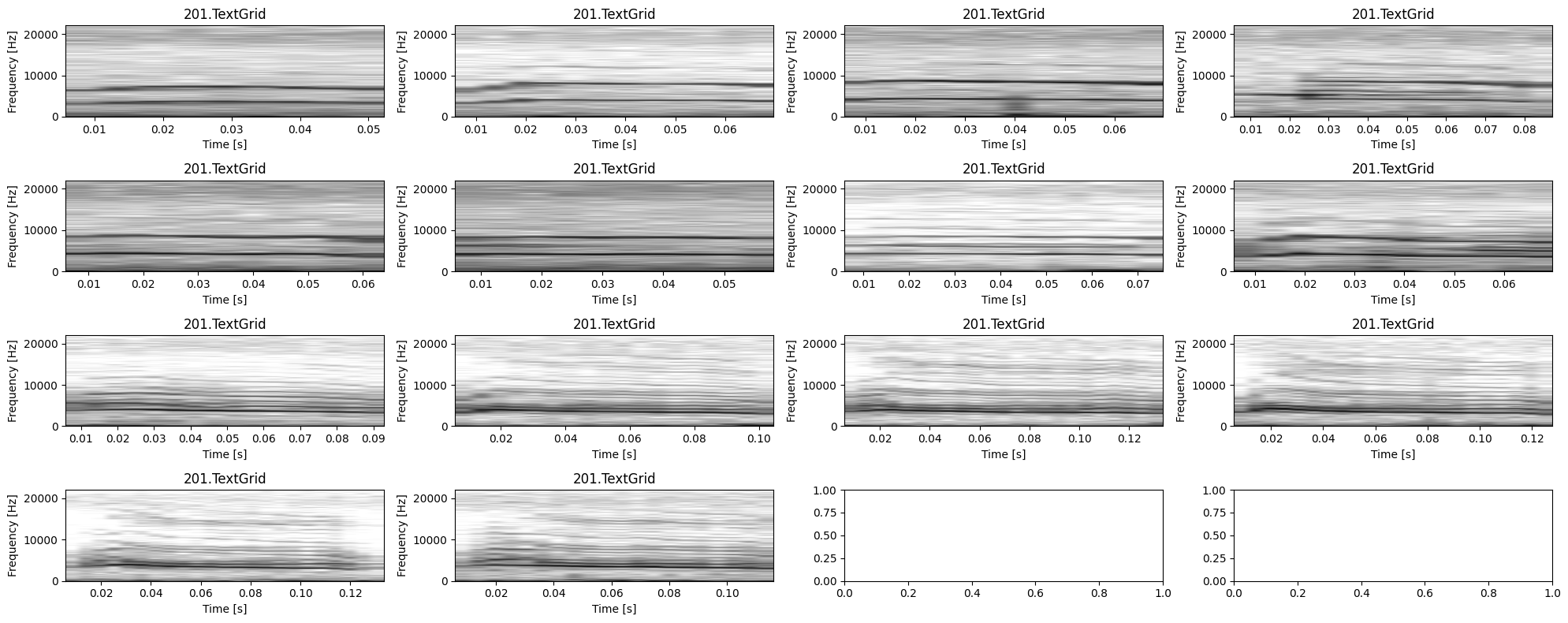

# or extract signal segments directly
audio_segments = handle.audio_segments_from_textgrid(data, sr, data_folder+"/201.TextGrid", tier_name="segments", dynamic_range=DYNAMIC_RANGE)

[64]:

audio_segments

[64]:

	waveform	label	sr	filename
0	[0.025147252, 0.018524736, 0.026093327, 0.0258...	1	44100	201.TextGrid
1	[0.020172736, 0.015442366, 0.020172736, 0.0142...	2	44100	201.TextGrid
2	[-0.054597612, -0.057924133, -0.058381908, -0....	3	44100	201.TextGrid
3	[0.032258064, 0.029877622, 0.025849178, 0.0291...	4	44100	201.TextGrid
4	[0.045014802, 0.053559985, 0.04809717, 0.04147...	5	44100	201.TextGrid
5	[-0.0018311106, -0.0053712577, -0.021454513, -...	6	44100	201.TextGrid
6	[0.005279702, 0.0128482925, 0.011902219, 0.008...	7	44100	201.TextGrid
7	[0.09707938, 0.09140293, 0.09353923, 0.0873744...	8	44100	201.TextGrid
8	[-0.09341716, -0.08297983, -0.077547535, -0.06...	9	44100	201.TextGrid
9	[-0.047029022, -0.043946654, -0.034943692, -0....	10	44100	201.TextGrid
10	[0.02255318, 0.029175695, 0.027527696, 0.01806...	11	44100	201.TextGrid
11	[-0.030945769, -0.036378063, -0.045381024, -0....	12	44100	201.TextGrid
12	[-0.030457472, -0.029267251, -0.027161473, -0....	13	44100	201.TextGrid
13	[-0.05056917, -0.040864285, -0.026673177, -0.0...	14	44100	201.TextGrid

[65]:

plot.plot_spectrogram_catalogue(audio_segments, "label", ncols=4, dynamic_range=DYNAMIC_RANGE)

[66]:

audio_segments['spectrogram'] = audio_segments.apply(
    lambda row: compute.utils.transform_spectrogram_for_nn(
        data=row['waveform'],
        sr=row['sr'],
        values_type='float32',
        f_min = 1500,
        f_max = 15000,
        window_length = WINDOW_LENGTH,
        resize=(128, 128)
    ),
    axis=1
)
audio_segments.head()

[66]:

	waveform	label	sr	filename	spectrogram
0	[0.025147252, 0.018524736, 0.026093327, 0.0258...	1	44100	201.TextGrid	[[[0.011764807, 0.0122770015, 0.012789195, 0.0...
1	[0.020172736, 0.015442366, 0.020172736, 0.0142...	2	44100	201.TextGrid	[[[0.009059372, 0.009443475, 0.0098275775, 0.0...
2	[-0.054597612, -0.057924133, -0.058381908, -0....	3	44100	201.TextGrid	[[[0.009791163, 0.010417299, 0.011043437, 0.01...
3	[0.032258064, 0.029877622, 0.025849178, 0.0291...	4	44100	201.TextGrid	[[[0.003403876, 0.005097091, 0.006790307, 0.00...
4	[0.045014802, 0.053559985, 0.04809717, 0.04147...	5	44100	201.TextGrid	[[[0.026451806, 0.024625745, 0.022799686, 0.02...

[67]:

n_cols = 3
n_rows = (len(audio_segments) + n_cols - 1) // n_cols

fig, axes = plt.subplots(nrows=n_rows, ncols=n_cols, figsize=(n_cols*3, n_rows*3))
axes = axes.flatten()

for i, (ax, spec) in enumerate(zip(axes, audio_segments['spectrogram'])):
    if spec.ndim == 3:
        spec_to_plot = spec[0]
    else:
        spec_to_plot = spec

    ax.imshow(spec_to_plot, origin='lower', aspect='auto', cmap='binary')
    ax.axis("off")
    ax.set_title(f"{audio_segments.iloc[i]['label']} - {audio_segments.iloc[i]['filename']}", fontsize=10)

for ax in axes[len(audio_segments):]:
    ax.axis("off")

plt.tight_layout()
plt.show()

Read all files in a folder into DataFrame and plot spectrogram catalogue

[68]:

df = handle.batch_read_files_to_df(data_folder+"/normalized")
df.head()

processing 307.wav
processing GT00025_G00220_Jafar_distance.wav
processing GT00024_G00219_Dagobert_distance.wav
processing 201.wav

[68]:

	filename	sr	waveform
0	307.wav	44100	[-0.027924437, -0.019623403, -0.021851253, -0....
1	GT00025_G00220_Jafar_distance.wav	44100	[0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, ...
2	GT00024_G00219_Dagobert_distance.wav	44100	[-0.00048829615, -0.00045777764, -0.0004272591...
3	201.wav	44100	[-0.01861629, -0.019348735, -0.013183996, -0.0...

[69]:

plot.plot_spectrogram_catalogue(df, "waveform", ncols=5, per_page=25, title_columns=["filename", "sr"], dynamic_range=55)

Future

Tokuda NLM
Yin pitch tracking + Pitch tracking wrapper
modulation spectra
event detection/segmentation
different noise reduction approaches
dt(f)w
autocorrelation + crosscorr
spectral flux
